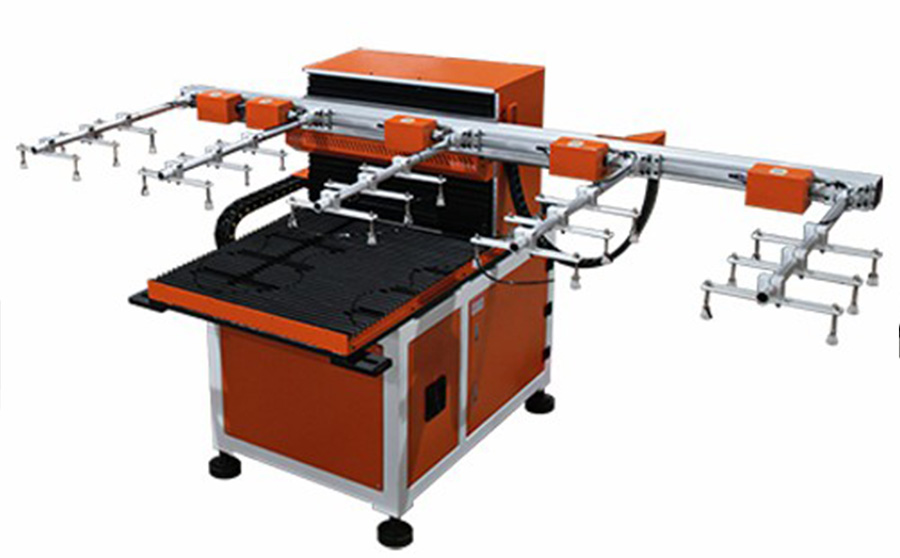

獨立式沖壓三軸機械手技術參數 | ||
型號 |
QE-3D-R-S-500-150 |
QE-3D-R-S-700-150 |
移動行程(X軸)(mm) Moving stroke(X-axes) |
500 | 500 |
移動行程(Y軸)(mm) Moving stroke(Y-axes) |
/ | 700 |
移動行程(Z軸)(mm) Moving stroke(Z-axes) |
0~150 | |
最快節拍*(pcs/min)Maximum SPM (最小節拍(Minimum SPM)) |
25 (15) |
|
定位精度 (mm) Positioning precision |
+0.2 | |
裝機功率 (Kw) Installed Power |
3.5 / 6 |
|
工作環境溫度(°C) Working temperature |
0~50 | |
工作環境相對濕度 (%) Ralative humidity of working environment |
≤80(無凝露 No condensation) | |
工作氣源要求 (Mpa[Kgf/cm]) Working air requirement |
0.5~0.7 | |
通信 (選配) Communication (Optional) |
RS485,CANopen,Etheret/lP | |
電源供應 Power supply |
3×380VAC+10%,50/60HZ±2% |
